Apex Dynamics provides a range of high-precision gearboxes. Our standard range of gearboxes offer high levels of precision at affordable prices. Improvements over our economy range include helical gears with stainless steel bodies and higher load capacity bearings.
These precision gearboxes are available in ratios of 3-100:1 (inline), 3-200:1 (right-angle) or up to 500:1 for the AT spiral bevel series.
Our standard planetary range, offering both inline and right angle stainless body gearboxes. An aluminium adapter is provided* with the gearbox to match your motor for easy installation (*except for ADS series).
Name | Output Design | Construction | Performance | Accuracy | Table | |
---|---|---|---|---|---|---|
![]() | AB Series | Machine Mounting Rotary Shaft Square Thru Hole Flange Inline | Aluminium Stainless steel | ★★★★★ | <1 arcmin, <7 arcmin | Metric flanged output precision planetary |
![]() | ABR Series | Machine Mounting Rotary Shaft Square Thru Hole Flange Right-Angle | Aluminium Stainless steel | ★★★★★ | <2 arcmin, <7 arcmin, <9 arcmin | Metric flanged output precision planetary |
![]() | AD Series | Machine Mounting Circular Flange Mount Inline | Aluminium Stainless steel | ★★★★★ | <1 arcmin, <7 arcmin | Metric flange mount precision planetary |
![]() | ADR Series | Machine Mounting Circular Flange Mount Right-Angle | Aluminium Stainless steel | ★★★★★ | <2 arcmin, <9 arcmin | Metric flange mount precision planetary |
![]() | ADS Series | Machine Mounting Circular Flange Mount Inline | Aluminium Stainless steel | ★★★★★ | <1 arcmin, <7 arcmin | Metric flange mount precision planetary, Shaft input |
![]() | AE Series | Machine Mounting Rotary Shaft Circular Face Mount Inline | Aluminium Stainless steel | ★★★★ | <12 arcmin, <8 arcmin | Metric circular precision planetary |
![]() | AER Series | Machine Mounting Rotary Shaft Circular Face Mount Right-Angle | Aluminium Stainless steel | ★★★★ | <10 arcmin, <14 arcmin | Metric circular precision planetary |
![]() | AF Series | Machine Mounting Rotary Shaft Square Thru Hole Flange Inline | Aluminium Stainless steel | ★★★★★ | <1 arcmin, <7 arcmin | Metric flanged output precision planetary |

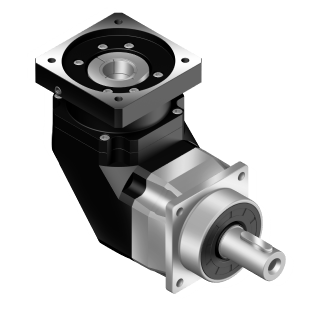

![]() | AFR Series | Machine Mounting Rotary Shaft Square Thru Hole Flange Right-Angle | Aluminium Stainless steel | ★★★★★ | <2 arcmin, <7 arcmin, <9 arcmin | Metric flanged output precision planetary |
Spiral bevel gearboxes offer a right-angle solution with a hollow shaft option. Available in both stainless and blackened steel varieties.
Input shaft versions available.
Name | Output Design | Construction | Performance | Accuracy | Table | |
---|---|---|---|---|---|---|
![]() | AT-4M Series | Rotary Shaft Square T-box Thru shaft | Stainless steel | ★★★★ | <10 arcmin, <6 arcmin, <8 arcmin | + and T style gearbox |
![]() | AT-Fx Series | Machine Mounting Rotary Shaft Square T-box Thru shaft | Stainless steel | ★★★★ | <10 arcmin, <6 arcmin, <8 arcmin | AT-FH/AT-FC/AT-FL, Metric T-style flange gearbox |
![]() | AT-x Series | Rotary Shaft Square T-box Thru shaft | Stainless steel | ★★★★ | <10 arcmin, <6 arcmin, <8 arcmin | AT-H/AT-C/AT-L, Metric T-style gearbox |
![]() | ATB-4M Series | Rotary Shaft Square T-box | Blackened steel | ★★★★ | <10 arcmin, <6 arcmin, <8 arcmin | + and T style gearbox |

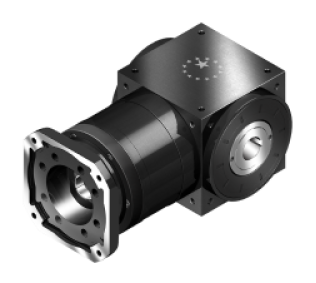

![]() | ATB-Fx Series | Machine Mounting Rotary Shaft Square T-box Thru shaft | Blackened steel | ★★★★ | <10 arcmin, <6 arcmin, <8 arcmin | ATB-FH/ATB-FC/ATB-FL, Metric T-style flange gearbox |
![]() | ATB-x Series | Rotary Shaft Square T-box Thru shaft | Blackened steel | ★★★★ | <10 arcmin, <6 arcmin, <8 arcmin | ATB-H/ATB-C/ATB-L, Metric T-style gearbox |
